Name: Festo 8187065 Solenoid valve VUVX-BK10-T32H-MZH-F-1T1L
Brand: Festo

Solenoid valve VUVX-BK10-T32H-MZH-F-1T1L

The Festo 8187065 is an electrical 10 mm industrial component featuring a 2x3/2 open/closed monostable valve function with a piston slide structural design and soft sealing principle. This piloted valve operates at 24V DC within an operating pressure range of 0 bar to 7 bar, delivering a standardized nominal flow rate of 555 l/min according to ISO 8778. Equipped with an IP65 degree of protection, mechanical spring reset, adjustable exhaust air function, and signal status display, the unit permits any mounting position and external pilot air supply. Submit the exact part number, quantity, and application requirements to request a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8187065
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8187065.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

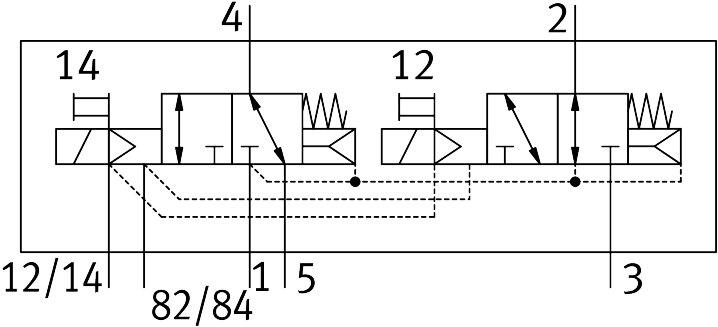

Valve function: 2x3/2, open/closed, monostable
Actuation type: Electrical
Valve size: 10 mm
Nominal ow rate standardized according to ISO 8778: 555 l/min
Operating voltage: 24V DC
Operating pressure: 0 MPa...0.7 MPa | 0 bar...7 bar
Structural design: Piston slide with sealing ring
Reset method: Mechanical spring
Degree of protection: IP65
Width: 10.35 mm
Nominal width: 3.6 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Reversible
Lap: Negative overlap
Signal status display: Yes
Pilot pressure MPa: 0.2 MPa...0.7 MPa
Pilot pressure: 2 bar...7 bar
Suitability for vacuum: No
b-value: 0.34
C value: 2.02 l/sbar
Nominal ow rate standardized according to ISO 8778 exhaust 2-3: 545 l/min
Max. switching frequency: 3 Hz
Switching time oﬀ: 17 ms
On switching time: 14 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1400 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8187065. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
