Festo
8187066

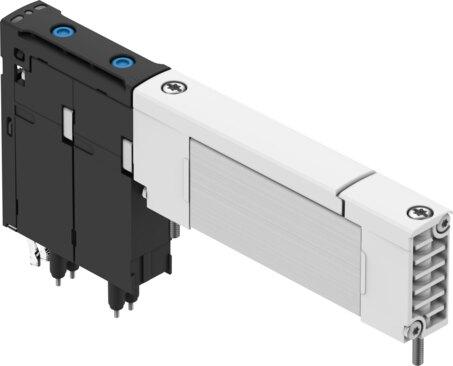

Solenoid valve VUVX-BK10-P53C-MZH-F-1T1L
The Festo 8187066 is an electrical 5/3-way closed industrial component featuring a 10 mm valve size, a 10.35 mm width, and a 3.5 mm nominal width. Utilizing a piloted piston slide structural design with a soft sealing principle and positive overlap lap, it delivers a standardized nominal flow rate of 510 l/min according to ISO 8778 across an operating pressure range of -0.09 MPa to 0.7 MPa (-0.9 bar to 7 bar). This IP65-rated unit operates on 24V DC, incorporates a mechanical spring reset, adjustable exhaust air function, non-detenting manual override, external pilot air supply port, reversible flow direction, and a signal status display for mounting in any position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187066
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187066.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 10 mm
- Nominal ow rate standardized according to ISO 8778
- 510 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Width
- 10.35 mm
- Nominal width
- 3.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.25 MPa...0.7 MPa
- Pilot pressure
- 2.5 bar...7 bar
- Suitability for vacuum
- Yes
- b-value
- 0.4
- C value
- 1.88 l/sbar
- Nominal ow rate standardized according to ISO 8778 exhaust 2-3
- 465 l/min
- Max. switching frequency
- 3 Hz
- Switching time off
- 48 ms
- On switching time
- 10 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1400 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8187066. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
