Festo
8187361

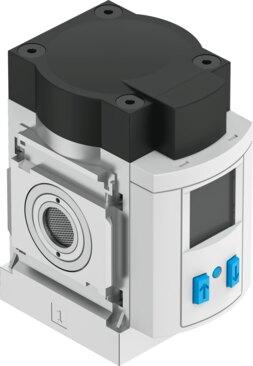

Flow sensor SFAM-62-1000L-M-PNLK-PNVBA-M12-EMD
The Festo part number 8187361 is an industrial component supporting unidirectional flow from left to right for compressed air as per ISO 8573-1:2010 [7:4:4], argon, carbon dioxide, and nitrogen. It features a pressure measuring range of 0 to 1.6 MPa (0 to 16 bar, 0 to 232 psi), a flow measuring range of 10 to 1000 l/min, and a temperature measuring range of 0 °C to 100 °C, backed by RCM, CE, and UKCA conformity along with RoHS compliance. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187361
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187361.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Flow direction
- Unidirectional | From left to right
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1.6 MPa | 16 bar | 232 psi
- Flow measuring range start value
- 10 l/min
- Flow measuring range end value
- 1000 l/min
- Temperature measuring range start value
- 0 °C
- Temperature measuring range end value
- 100 °C
- Operating pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Argon | Compressed air as per ISO 8573-1:2010 [7:4:4] | Carbon dioxide | Nitrogen
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Nominal temperature
- 23 °C
- Accuracy of pressure value in ± %FS
- 1.5 %FS
- Accuracy of ow rate
- ±(3% o.m.v. + 0.3% FS)
- Accuracy of temperature in ± °C
- 5 °C
- Repetition accuracy of pressure value in ± %FS
- 0.3 %FS
