8187364

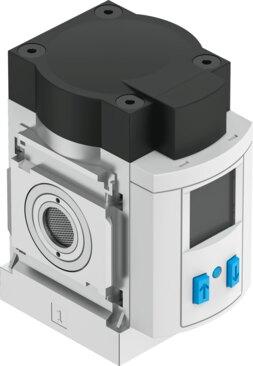

Name: Festo 8187364 Flow sensor SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD
Brand: Festo

Flow sensor SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD

The Festo part number 8187364 is an industrial component supporting unidirectional flow from left to right for compressed air as per ISO 8573-1:2010 [7:4:4], argon, carbon dioxide, and nitrogen. It features an operating pressure of 1.6 MPa (16 bar or 232 psi), an overload pressure of 2 MPa (20 bar or 290 psi), a pressure measuring range from 0 to 1.6 MPa (0 to 16 bar or 0 to 232 psi) with 1.5 %FS accuracy, a flow measuring range of 10 to 1000 l/min with an accuracy of ±(3% o.m.v. + 0.3% FS), and a temperature measuring range of 0 °C to 100 °C with a 5 °C temperature accuracy at a nominal temperature of 23 °C. This device operates with medium and ambient temperatures ranging from 0 °C to 50 °C and carries RCM compliance, CE marking as per EU EMC and RoHS directives, UKCA marking to UK instructions for EMC and RoHS, and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8187364
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8187364.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Flow direction: Unidirectional | From left to right
Pressure measuring range initial value: 0 MPa | 0 bar | 0 psi
Pressure measuring range end value: 1.6 MPa | 16 bar | 232 psi
Flow measuring range start value: 10 l/min
Flow measuring range end value: 1000 l/min
Temperature measuring range start value: 0 °C
Temperature measuring range end value: 100 °C
Operating pressure: 1.6 MPa | 16 bar | 232 psi
Overload pressure: 2 MPa | 20 bar | 290 psi
Operating medium: Argon | Compressed air as per ISO 8573-1:2010 [7:4:4] | Carbon dioxide | Nitrogen
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Nominal temperature: 23 °C
Accuracy of pressure value in ± %FS: 1.5 %FS
Accuracy of ow rate: ±(3% o.m.v. + 0.3% FS)
Accuracy of temperature in ± °C: 5 °C
Repetition accuracy of pressure value in ± %FS: 0.3 %FS

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8187364. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
