Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8187365

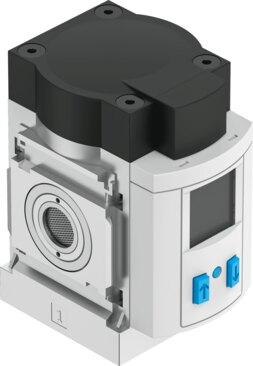

Flow sensor SFAM-62-3000L-TG12-PNLK-PNVBA-M12-EMD
This Festo industrial component, part number 8187365, measures unidirectional flow from left to right with a flow measuring range of 30 l/min to 3000 l/min and a flow rate accuracy of ±(3% o.m.v. + 0.3% FS). The unit operates with a pressure measuring range from 0 to 1.6 MPa (16 bar / 232 psi), an operating pressure of 1.6 MPa (16 bar / 232 psi), an overload pressure of 2 MPa (20 bar / 290 psi), and a pressure value accuracy of 1.5 %FS. It functions with a medium and ambient temperature of 0 °C to 50 °C, a nominal temperature of 23 °C, a temperature measuring range of 0 °C to 100 °C with an accuracy of ±5 °C, and accommodates operating mediums including argon, compressed air as per ISO 8573-1:2010 [7:4:4], carbon dioxide, and nitrogen. Certified with the RCM compliance mark, CE marking as per the EU EMC and RoHS directives, UKCA marking to UK instructions for EMC and RoHS, and RoHS material compliance, the component carries part number 8187365. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187365
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187365.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Flow direction
- Unidirectional | From left to right
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1.6 MPa | 16 bar | 232 psi
- Flow measuring range start value
- 30 l/min
- Flow measuring range end value
- 3000 l/min
- Temperature measuring range start value
- 0 °C
- Temperature measuring range end value
- 100 °C
- Operating pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Argon | Compressed air as per ISO 8573-1:2010 [7:4:4] | Carbon dioxide | Nitrogen
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Nominal temperature
- 23 °C
- Accuracy of pressure value in ± %FS
- 1.5 %FS
- Accuracy of ow rate
- ±(3% o.m.v. + 0.3% FS)
- Accuracy of temperature in ± °C
- 5 °C
- Repetition accuracy of pressure value in ± %FS
- 0.3 %FS
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8187365. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
