Festo
8187601

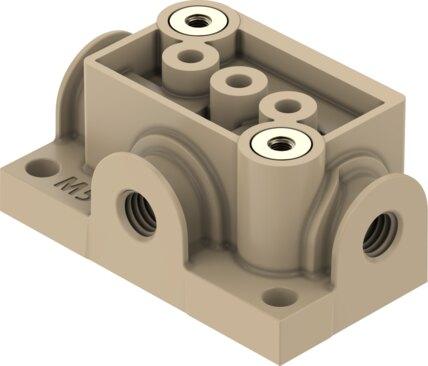

Sub-base VABS-K3-16S-20-M5-P
Engineered by Festo, part number 8187601 is a 9 g industrial component with a size 16, a nominal width of 2 mm, and a 16 mm valve size featuring an internal thread M5 fluid connector. The unit has a lateral connection direction, supports any mounting position, accommodates 1 valve position, and offers a reversible flow direction for both liquid and gaseous operating media within an ambient and medium temperature range of 0 °C to 50 °C. It maintains a CRC corrosion resistance class of 0 with VDMA24364 Zone III LABS conformity, while storage temperatures span from -20 °C to 70 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8187601
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8187601.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Nominal width
- 2 mm
- Valve size
- 16 mm
- Fluid connector
- Internal thread M5
- Mounting position
- Any
- Structural design
- Lateral connection direction
- Max. no. of valve positions
- 1
- Flow direction
- Reversible
- Operating medium
- Liquid media | Gaseous media
- Information on operating and pilot media
- Observe resistance of materials that come into contact with media
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...70 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Max. tightening torque for valve mounting
- 0.3 Nm
- Max. tightening torque of pneumatic tting
- 0.5 Nm
- Max. tightening torque
- 0.6 Nm
- Product weight
- 9 g
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Note on materials
- RoHS compliant
- Material of sub-base
- PEEK
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8187601. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
