Festo
8188239

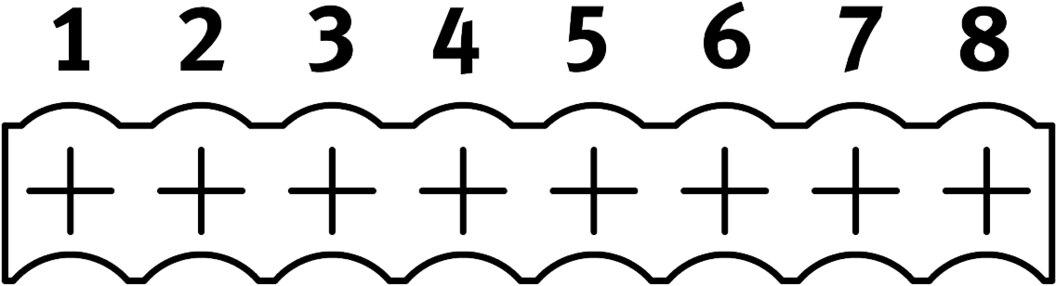

Assortment of plugs NECC-S-L16G-C2-P8
This Festo industrial component, part number 8188239, features a push-pull mounting type and a straight cable outlet with any mounting position, weighing 36.8 g in a pack size of 8. Electrical connection 1 utilizes a square plug design for power supply and control side functions, featuring a straight cable outlet, 4 or 8 pins or wires, and inserted mounting. Electrical connection 2 incorporates a square terminal strip design with a straight cable outlet, screw terminal connection technology, 4 or 8 pins or wires, and functions for the field device side or power supply at a 24 V DC nominal operating voltage and 4 A current rating at 40° C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188239
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188239.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- Push-pull
- Cable outlet
- Straight
- Mounting position
- Any
- Product weight
- 36.8 g
- Pack size
- 8
- Electrical connection
- Plug
- Electrical connection 1, function
- Power supply | Control side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, number of pins/wires
- 4 | 8
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, function
- Field device side | Power supply
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Terminal strip
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 4 | 8
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Nominal conductor cross section
- 0.14 mm²...1.5 mm² | AWG30 - 14
- Degree of protection
- IP20
- Ambient temperature
- -40 °C...120 °C
- Note on ambient temperature
- -40 ... 105 °C for UL applications
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 0 - 70%
- Overvoltage category
- III
