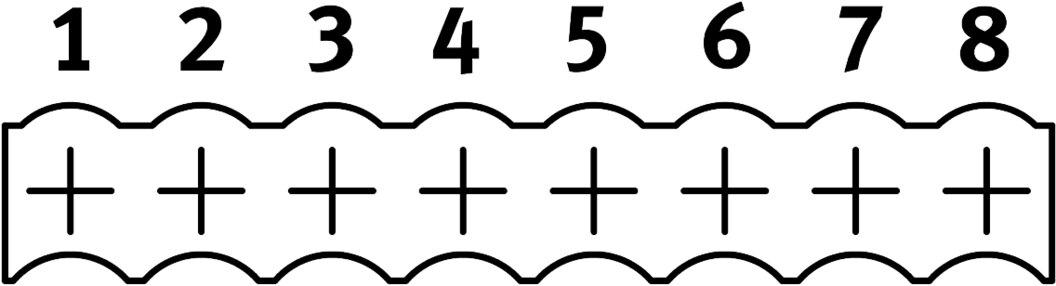

Reference imageConfirm configuration by manufacturer part number.
Festo
8188240
Assortment of plugs NECC-S-L16G-C2-P11
The Festo part number 8188240 is an industrial component featuring a push-pull mounting type and a straight cable outlet with any mounting position, weighing 52.6 g in a pack size of 11. It operates at a nominal DC voltage of 24 V with a current rating of 4 A at 40° C through an electrical connection plug. Electrical connection 1 functions for the power supply and control side with a square design, plug connection type, straight cable outlet, 4 or 8 pins or wires, and an inserted mounting type. Electrical connection 2 serves the field device side and power supply with a square design, terminal strip connection type, straight cable outlet, screw terminal connection technology, and 4 or 8 pins or wires. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188240
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188240.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- Push-pull
- Cable outlet
- Straight
- Mounting position
- Any
- Product weight
- 52.6 g
- Pack size
- 11
- Electrical connection
- Plug
- Electrical connection 1, function
- Power supply | Control side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, number of pins/wires
- 4 | 8
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, function
- Field device side | Power supply
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Terminal strip
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 4 | 8
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Nominal conductor cross section
- 0.14 mm²...1.5 mm² | AWG30 - 14
- Degree of protection
- IP20
- Ambient temperature
- -40 °C...120 °C
- Note on ambient temperature
- -40 ... 105 °C for UL applications
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 0 - 70%
- Overvoltage category
- III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8188240. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
