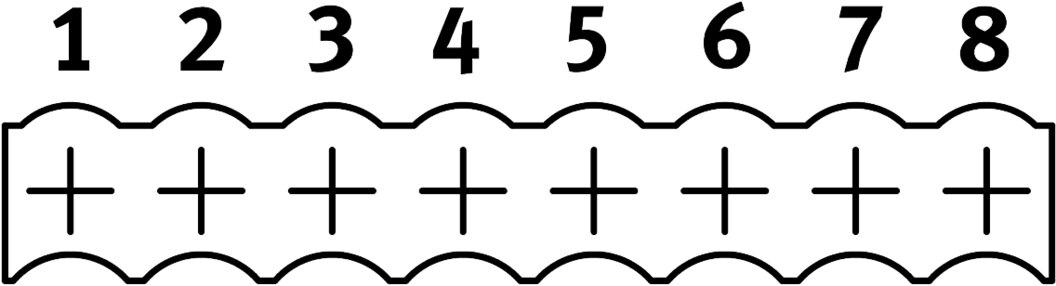

Reference imageConfirm configuration by manufacturer part number.
Festo
8188241
Assortment of plugs NECC-S-L16G-C1-P11
This Festo industrial component, part number 8188241, features a push-pull mounting type, a straight cable outlet, and any mounting position with a product weight of 73.2 g supplied in a pack size of 11. The electrical connection utilizes a plug design functioning for power supply and control side on connection 1, which has a square shape, 4 or 8 pins, and inserted mounting, while connection 2 acts as a field device side and power supply featuring a square design with a spring-loaded terminal strip, straight cable outlet, and 4 or 8 pins. Operating at a nominal voltage of 24 V DC with a current rating of 4 A at 40° C, this unit is available for procurement. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188241
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188241.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- Push-pull
- Cable outlet
- Straight
- Mounting position
- Any
- Product weight
- 73.2 g
- Pack size
- 11
- Electrical connection
- Plug
- Electrical connection 1, function
- Power supply | Control side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, number of pins/wires
- 4 | 8
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, function
- Field device side | Power supply
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Terminal strip
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Spring-loaded terminal
- Electrical connection 2, number of pins/wires
- 4 | 8
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Nominal conductor cross section
- 0.2 mm²...1.5 mm² | AWG28 - 16
- Degree of protection
- IP20
- Ambient temperature
- -40 °C...115 °C
- Note on ambient temperature
- -40 ... 105 °C for UL applications
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 0 - 70%
- Overvoltage category
- III
