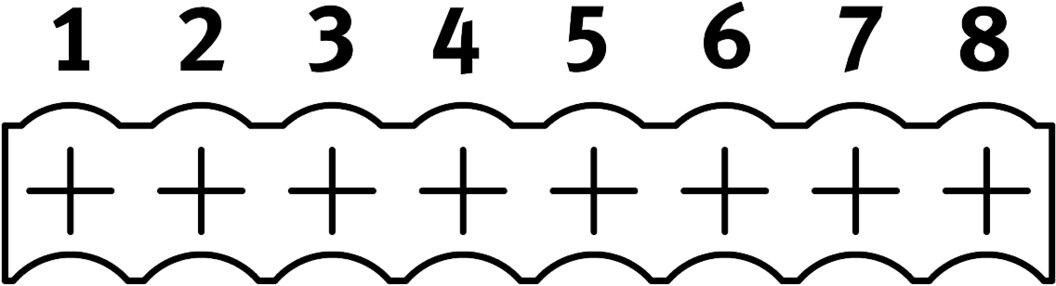

Reference imageConfirm configuration by manufacturer part number.
Festo
8188242
Assortment of plugs NECC-S-L16G-C1-P8
This Festo industrial component, part number 8188242, features a push-pull mounting type and a straight cable outlet with any mounting position. Weighing 51.3 g and supplied in a pack size of 8, it operates at a nominal DC voltage of 24 V with a 4 A current rating at 40° C. Electrical connection 1 utilizes a 4- or 8-pin square plug with inserted mounting and a straight cable outlet for power supply and control side functions, while electrical connection 2 incorporates a square terminal strip with 4 or 8 spring-loaded terminals and a straight cable outlet for field device side and power supply functions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188242
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188242.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- Push-pull
- Cable outlet
- Straight
- Mounting position
- Any
- Product weight
- 51.3 g
- Pack size
- 8
- Electrical connection
- Plug
- Electrical connection 1, function
- Power supply | Control side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, number of pins/wires
- 4 | 8
- Electrical connection 1, type of mounting
- Inserted
- Electrical connection 2, function
- Field device side | Power supply
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Terminal strip
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Spring-loaded terminal
- Electrical connection 2, number of pins/wires
- 4 | 8
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Nominal conductor cross section
- 0.2 mm²...1.5 mm² | AWG28 - 16
- Degree of protection
- IP20
- Ambient temperature
- -40 °C...115 °C
- Note on ambient temperature
- -40 ... 105 °C for UL applications
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 0 - 70%
- Overvoltage category
- III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8188242. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
