Festo
8188450

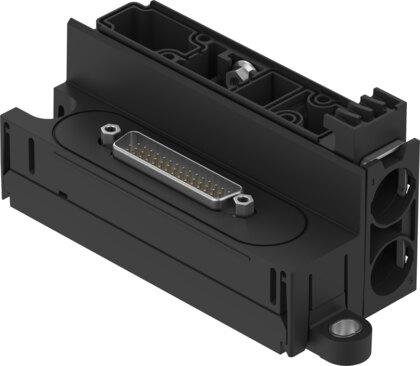

Manifold sub-base VABX-A-P-EL-E12-MS8-SHUH-XL
The Festo part number 8188450 is an industrial component featuring a valve manifold design with interchangeable valve sizes, compatibility with the VTUX-A-P valve manifold, and a maximum of 32 solenoid coils with lateral connection position. It measures 45.6 mm x 117.4 mm x 53.9 mm in size 1 and 2, operates on a nominal DC load voltage of 24 V requiring SELV/PELV fixed power supplies, and achieves an IP65 degree of protection with a contamination level of 2. Certified with RCM, KC-EMV, CE marking, and UKCA marking, this component withstands vibration severity level 2 per FN 942017-4 and EN 60068-2-6 alongside shock severity level 2 per FN 942017-5 and EN 60068-2-27. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188450
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188450.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Connection position
- Lateral
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 32
- Compatible with
- Valve manifold VTUX-A-P
- Dimensions W x L x H
- 45.6 mm x 117.4 mm x 53.9 mm
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Nominal operating voltage DC load
- 24 V
- Contamination level
- 2
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...50 °C
- Max. tightening torque for wall mounting
- 6 Nm
- Product weight
- 131.1 g
- Electrical actuation
- Multi-pin
- Max. cable length
- 30 m
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 44
- Cable outlet
- Straight
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8188450. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
