Festo
8188452

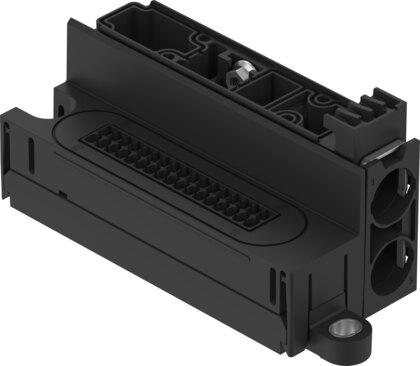

Manifold sub-base VABX-A-P-EL-E12-MC-SHUH-XL
The Festo part number 8188452 is an industrial component compatible with the valve manifold VTUX-A-P, featuring an interchangeable valve sizes design with a lateral connection position and dimensions of 45.6 mm x 117.4 mm x 53.9 mm. This component supports a maximum of 32 solenoid coils, operates at a nominal DC load voltage of 24 V with SELV/PELV fixed power supplies, and holds an IP40 degree of protection along with RCM, KC-EMV, CE, and UKCA markings. It withstands moderate corrosion stress with a CRC rating of 2, operates within a contamination level 2 environment, and meets FN and EN standards for vibration and shock resistance. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188452
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188452.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Connection position
- Lateral
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 32
- Compatible with
- Valve manifold VTUX-A-P
- Dimensions W x L x H
- 45.6 mm x 117.4 mm x 53.9 mm
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Nominal operating voltage DC load
- 24 V
- Contamination level
- 2
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -20 °C...50 °C
- Max. tightening torque for wall mounting
- 6 Nm
- Product weight
- 122.2 g
- Electrical actuation
- Multi-pin
- Max. cable length
- 30 m
- Electrical connection 1, connection technology
- Spring-loaded terminal
- Electrical connection 1, number of pins/wires
- 34
- Connection cross section
- 0.2 mm²...1.5 mm²
