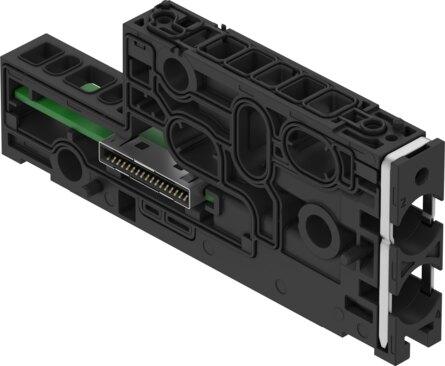

Reference imageConfirm configuration by manufacturer part number.
Festo
8188463
Manifold sub-base VABX-A-P-BV-BH-B
The Festo industrial component, part number 8188463, is a size 2 unit featuring an integrated electrical interlinking module and a reversible flow direction for valve manifold VTUX-A-P compatibility. Measuring 12.55 mm x 104.3 mm x 43.1 mm with a standardized nominal flow rate of 690 l/min according to ISO 8778, this part supports a maximum of 1 valve position and up to 2 solenoid coils while providing vacuum suitability. It carries RCM compliance, KC-EMV, and CE markings as per EU EMC and RoHS directives, alongside a corrosion resistance class of CRC 2 and vibration and shock resistance meeting severity level 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188463
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188463.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 2
- Width dimension
- 12.55 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Max. no. of valve positions
- 1
- Integrated function
- With electrical interlinking module
- Flow direction
- Reversible
- Max. no. of solenoid coils
- 2
- Compatible with
- Valve manifold VTUX-A-P
- Suitability for vacuum
- Yes
- Nominal ow rate standardized according to ISO 8778
- 690 l/min
- Dimensions W x L x H
- 12.55 mm x 104.3 mm x 43.1 mm
- Contamination level
- 2
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 36.2 g
- Electrical actuation
- Multi-pin
- Sub-base mounting type
- With through-hole
- Type of mounting
- Tie rod
- Pneumatic connection 2
- for 12 mm cartridge
- Pneumatic connection 4
- for 12 mm cartridge
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8188463. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
