Festo
8188465

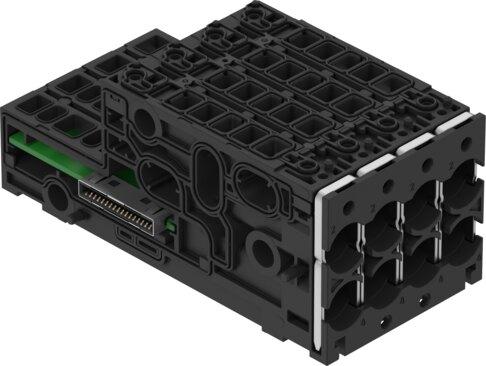

Manifold sub-base VABX-A-P-BV-BH-RVBBBB
Engineered by Festo, part number 8188465 is a size 2 industrial component featuring a width dimension of 12.55 mm and overall dimensions of 50.05 mm x 104.3 mm x 43.1 mm. This unit supports up to 4 valve positions and 8 solenoid coils, provides a reversible flow direction with a standardized nominal flow rate of 690 l/min according to ISO 8778, and includes an integrated electrical interlinking module with vacuum suitability. It complies with EU EMC and RoHS directives, holds RCM and KC-EMV certifications, achieves a corrosion resistance class of 2, and withstands severity level 2 vibration and shock tests per specified standards. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188465
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188465.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 2
- Width dimension
- 12.55 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Max. no. of valve positions
- 4
- Integrated function
- With electrical interlinking module
- Flow direction
- Reversible
- Max. no. of solenoid coils
- 8
- Compatible with
- Valve manifold VTUX-A-P
- Suitability for vacuum
- Yes
- Nominal ow rate standardized according to ISO 8778
- 690 l/min
- Dimensions W x L x H
- 50.05 mm x 104.3 mm x 43.1 mm
- Contamination level
- 2
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 136.2 g
- Electrical actuation
- Multi-pin
- Sub-base mounting type
- With through-hole
- Type of mounting
- Tie rod
- Pneumatic connection 2
- for 12 mm cartridge
- Pneumatic connection 4
- for 12 mm cartridge
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
