Festo
8188466

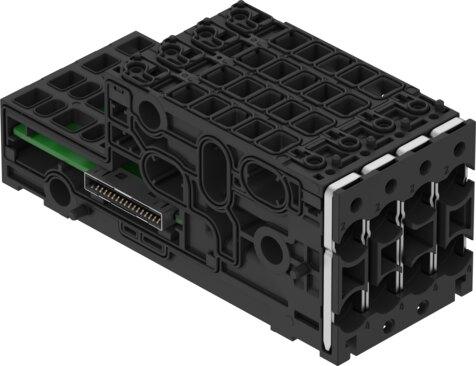

Manifold sub-base VABX-A-S-BV-AH-RVAAAA
The Festo part number 8188466 is an industrial component compatible with the valve manifold VTUX-A-S, featuring a size of 1 and dimensions measuring 42.05 mm by 104.3 mm by 43.1 mm with a width dimension of 10.55 mm. This unit includes an integrated electrical interlinking module, reversible flow direction, suitability for vacuum operations, and a standardized nominal flow rate of 470 l/min according to ISO 8778 supporting a maximum of 4 valve positions and 8 solenoid coils. Operational safety features comprise reverse polarity protection, internal electronic fuse short-circuit protection per channel, an installed inductive protective circuit, and diagnostic capabilities via LED per channel and per module as well as through internal communication monitoring load switch-off, load supply overvoltage and undervoltage PL, and logic supply overvoltage and undervoltage PS. Submit the exact part number, quantity, and application requirements to receive a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188466
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188466.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1
- Width dimension
- 10.55 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per channel | Diagnostics per module
- Diagnose per internal communication
- Load switch-off | Load supply undervoltage PL | Logic supply undervoltage PS | Load supply overvoltage PL | Logic supply overvoltage PS
- Max. no. of valve positions
- 4
- Integrated function
- With electrical interlinking module
- Flow direction
- Reversible
- Max. no. of solenoid coils
- 8
- Compatible with
- Valve manifold VTUX-A-S
- Suitability for vacuum
- Yes
- Nominal ow rate standardized according to ISO 8778
- 470 l/min
- Dimensions W x L x H
- 42.05 mm x 104.3 mm x 43.1 mm
- Fuse protection (short circuit)
- Internal electronic fuse per channel
- Inductive protective circuit
- Installed
- Intrinsic current consumption at nominal operating voltage for
- typically 24 mA
- Intrinsic current consumption at nominal operating voltage load
- typically 7 mA
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Power consumption at 24 VDC
- 740 mW
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Electrical isolation of outputs between channel - internal communication
- Yes
