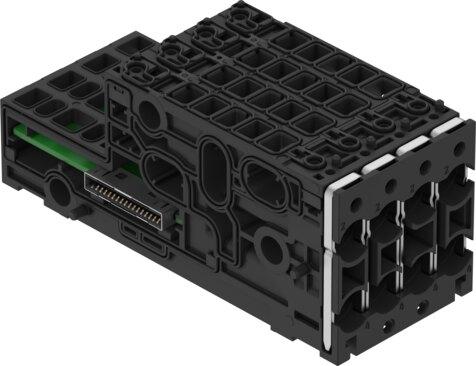

Name: Festo 8188467 Manifold sub-base VABX-A-S-BV-BH-RVBBBB
Brand: Festo

Manifold sub-base VABX-A-S-BV-BH-RVBBBB

The Festo part number 8188467 is an industrial component compatible with the valve manifold VTUX-A-S, featuring a width dimension of 12.55 mm and overall dimensions of 50.05 mm x 104.3 mm x 43.1 mm. This size 2 unit includes an integrated electrical interlinking module supporting up to 4 valve positions and 8 solenoid coils, alongside a standardized nominal flow rate of 690 l/min according to ISO 8778 and reversible flow direction. Built-in diagnostics operate per channel and per module, with internal communication monitoring load switch-off, supply undervoltage, and supply overvoltage for both PL and PS circuits. Electrical safeguards comprise reverse polarity protection, internal electronic fuses per channel, an installed inductive protective circuit, and required SELV/PELV fixed power supplies. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8188467
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8188467.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 2
Width dimension: 12.55 mm
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Reverse polarity protection: Yes
Diagnostics via LED: Diagnostics per channel | Diagnostics per module
Diagnose per internal communication: Load switch-oﬀ | Load supply undervoltage PL | Logic supply undervoltage PS | Load supply overvoltage PL | Logic supply overvoltage PS
Max. no. of valve positions: 4
Integrated function: With electrical interlinking module
Flow direction: Reversible
Max. no. of solenoid coils: 8
Compatible with: Valve manifold VTUX-A-S
Suitability for vacuum: Yes
Nominal ow rate standardized according to ISO 8778: 690 l/min
Dimensions W x L x H: 50.05 mm x 104.3 mm x 43.1 mm
Fuse protection (short circuit): Internal electronic fuse per channel
Inductive protective circuit: Installed
Intrinsic current consumption at nominal operating voltage for: typically 24 mA
Intrinsic current consumption at nominal operating voltage load: typically 7 mA
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop
Power consumption at 24 VDC: 740 mW
Nominal operating voltage DC for electronics/sensors: 24 V
Nominal operating voltage DC load: 24 V
Power failure buﬀering: 10 ms
Electrical isolation of outputs between channel - internal communication: Yes
