Festo
8188590

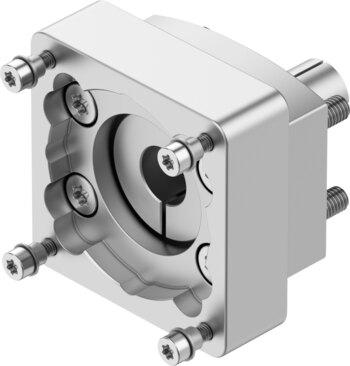

Axial kit EAMM-A-N38-60P
The Festo 8188590 is an industrial component with a nominal length of 36 mm, a mass moment of inertia of 14.5 kgmm², and a product weight of 314 g. Featuring an actuator interface code of N38 and a motor-in interface code of 60P or 60PA, this RoHS-compliant part transfers up to 12.5 Nm of torque at a maximum rotational speed of 8000 rpm in any mounting position. It operates within an ambient temperature range of -10 °C to 60 °C, withstands storage temperatures from -25 °C to 60 °C and relative air humidity up to 95%, meets VDMA24364-B2-L LABS conformity, and provides an IP40 degree of protection. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188590
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188590.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 36 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 314 g
- Interface code, actuator
- N38
- Interface code, motor in
- 60P | 60PA
- Note on materials
- RoHS compliant
