Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

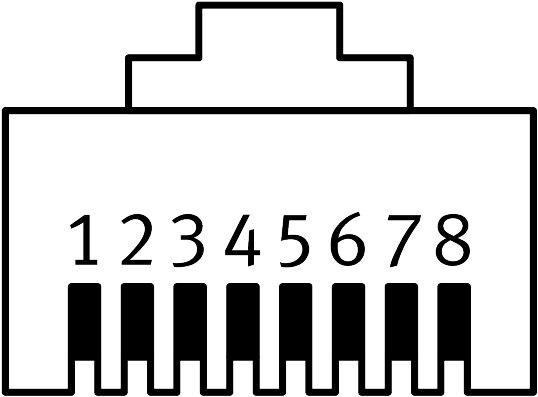

Reference imageConfirm configuration by manufacturer part number.
Festo
8188950
Connecting cable NEBC-R3G4-ES-0.3-N-S-R3G4-ET
This Festo industrial component, part number 8188950, is manufactured based on the EN 61076-2-114 norm and weighs 25.5 g with a contact durability of 750 mating cycles. It features straight RJ45 plugs as per IEC 60603-7-3 on both electrical connections with 8 pins and 4 occupied pins, utilizing a snap-locking mounting type for any mounting position. The design incorporates control-side square plugs without a label holder for cable designation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188950
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188950.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-114
- Cable designation
- Without label holder
- Contact durability
- 750
- Mounting position
- Any
- Product weight
- 25.5 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Snap-locking
- DC operating voltage range
- 0 V...60 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 1.5 kV
- Reverse polarity protection
- No
- Protective earth connection
- Not available
- Shield
- Yes
- Transmission characteristics
- as per system communication AP
- Cable length
- 0.3 m
- Cable characteristic
- Suitable for energy chains
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8188950. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
