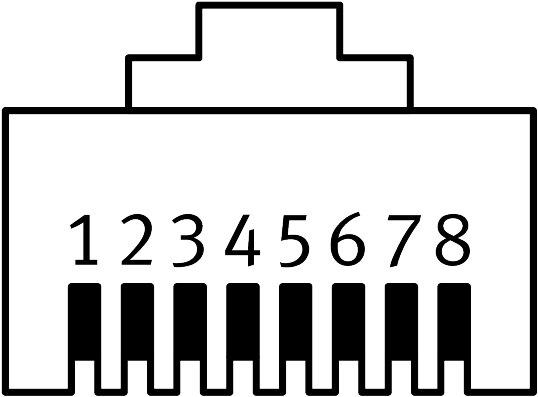

Reference imageConfirm configuration by manufacturer part number.
Festo
8188952
Connecting cable NEBC-R3G4-ES-1-N-S-R3G4-ET
This Festo industrial component, part number 8188952, is built to EN 61076-2-114 norms and features a product weight of 52 g with an any mounting position and a cable designation without a label holder. Both the control-side electrical connections feature a straight square plug design utilizing RJ45 connection technology as per IEC 60603-7-3 with eight total pins, four occupied pins, snap-locking mounting, and a contact durability of 750 mating cycles. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188952
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188952.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-114
- Cable designation
- Without label holder
- Contact durability
- 750
- Mounting position
- Any
- Product weight
- 52 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Snap-locking
- DC operating voltage range
- 0 V...60 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 1.5 kV
- Reverse polarity protection
- No
- Protective earth connection
- Not available
- Shield
- Yes
- Transmission characteristics
- as per system communication AP
- Cable length
- 1 m
- Cable characteristic
- Suitable for energy chains
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8188952. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
