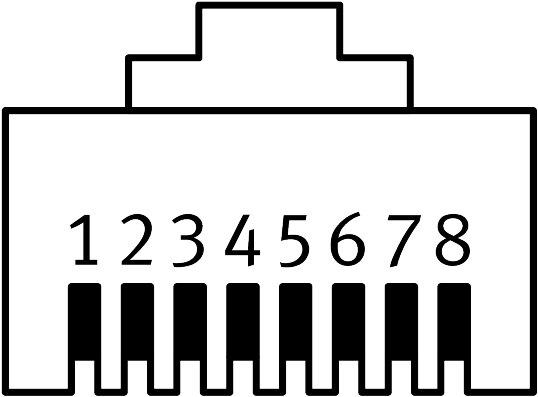

Reference imageConfirm configuration by manufacturer part number.
Festo
8188953
Connecting cable NEBC-R3G4-ES-2-N-S-R3G4-ET
This industrial component from Festo, part number 8188953, is manufactured in accordance with the EN 61076-2-114 norm and weighs 88 g with a cable designation without a label holder. The unit features dual square, straight-outlet plugs utilizing RJ45 connection technology as per IEC 60603-7-3 for both control-side electrical connections, each designed with 8 pins, 4 occupied pins, and snap-locking mountings for any mounting position and a contact durability of 750 cycles. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8188953
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8188953.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-114
- Cable designation
- Without label holder
- Contact durability
- 750
- Mounting position
- Any
- Product weight
- 88 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45 as per IEC 60603-7-3
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Snap-locking
- DC operating voltage range
- 0 V...60 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 1.5 kV
- Reverse polarity protection
- No
- Protective earth connection
- Not available
- Shield
- Yes
- Transmission characteristics
- as per system communication AP
- Cable length
- 2 m
- Cable characteristic
- Suitable for energy chains
