Festo
8189339

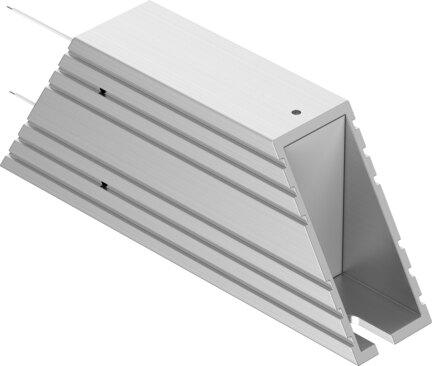

Braking resistor CACR-LE2-6-W60-V
The Festo part number 8189339 is an industrial component featuring a 6 Ohm resistance value, a 60 W braking resistor nominal power, and a 2000 Ws pulse energy braking resistor at both 380 V and 780 V. Certified as c UL us recognized (OL) with RoHS compliant materials and VDMA24364 Zone III LABS conformity, this IP54-rated device supports an output of 180 W at a 35% duty cycle and 20°C within an ambient temperature range of -40 °C to 40 °C. It mounts via through-hole in an open convection or vertical position, exhibiting a maximum surface temperature of 250 °C at nominal power and 165 °C at 50% nominal power, with a total product weight of 150 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8189339
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8189339.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Open convection | Vertical
- Pulse energy braking resistor at 380 V
- 2000 Ws
- Pulse energy braking resistor at 780 V
- 2000 Ws
- Output at 35% duty cycle and 20°C
- 180 W
- Braking resistor nominal power
- 60 W
- Braking resistor nominal power at 380 V
- 60 W
- Braking resistor nominal power at 780 V
- 60 W
- Resistance value
- 6 Ohm
- Certication
- c UL us - recognized (OL)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Max. surface temperature
- 250 °C
- Note on surface temperature
- Indication at nominal power, at 50% nominal power: 165°C
- Degree of protection
- IP54
- Ambient temperature
- -40 °C...40 °C
- Product weight
- 150 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8189339. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
