Festo
8189576

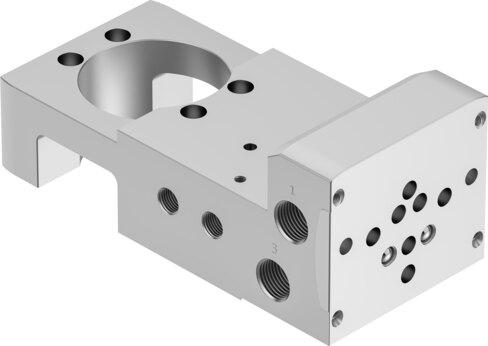

Adapter plate VABA-C13-100-1-F90-G12-G14
This Festo industrial component, part number 8189576, is a structural rotary actuator adapter featuring a VDI/VDE 3845-1 conforming valve connection, a product weight of 2530 g, and a corrosion resistance class of CRC 3. The unit operates within a temperature range of -40 °C to 80 °C, supports an operating pressure of 0 MPa to 0.9 MPa (0 bar to 9 bar) using compressed air or inert gases, and holds ATEX certifications for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8189576
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8189576.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 180 | 240 | 300 | 360 | 480 | 700 | 720 | 900
- Mounting position
- Any
- Structural design
- Adapter for rotary actuator
- Valve connection conforms to standard
- VDI/VDE 3845-1
- Operating pressure
- 0 MPa...0.9 MPa | 0 bar...9 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:7:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -40 °C...80 °C
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 2530 g
- Type of mounting
- With accessories
- Pneumatic connection
- Sub-base design, airing
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/2
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Cover material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Seals material
- EPDM | NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8189576. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
