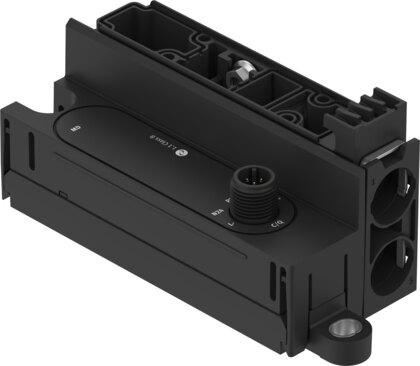

Name: Festo 8189590 Manifold sub-base VABX-A-P-EL-E12-IOS-SHUH-XL
Brand: Festo

Manifold sub-base VABX-A-P-EL-E12-IOS-SHUH-XL

The Festo industrial component, part number 8189590, is designed for the valve manifold VTUX-A-P with an interchangeable valve sizes design supporting a maximum of 32 solenoid coils and featuring lateral connection positions. It measures 45.6 mm x 117.4 mm x 53.9 mm, operates at a nominal voltage of 24 VDC for both electronics/sensors and load with SELV/PELV fixed power supplies required, and includes LED diagnostics for power supply load and connection status alongside internal electronic fuses per channel for short circuit protection. Built with vibration resistance to FN 942017-4 and EN 60068-2-6 severity level 2 and shock resistance to FN 942017-5 and EN 60068-2-27 severity level 2, the unit provides electrical isolation of outputs and potential separation between supply voltages. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8189590
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8189590.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 1 | 2
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Connection position: Lateral
Reverse polarity protection: Yes
Diagnostics via LED: (outputs) power supply load | Connection Status
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 32
Compatible with: Valve manifold VTUX-A-P
Dimensions W x L x H: 45.6 mm x 117.4 mm x 53.9 mm
Fuse protection (short circuit): Internal electronic fuse per channel
Intrinsic current consumption at nominal operating voltage for: typically 10 mA
Intrinsic current consumption at nominal operating voltage load: Typically 15 mA
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop
Power consumption at 24 VDC: 240 mW
Max. power supply: 2 x 4 A (external fuse required)
Nominal operating voltage DC for electronics/sensors: 24 V
Nominal operating voltage DC load: 24 V
Electrical isolation of outputs between channel - internal communication: Yes
Potential separation between the supply voltages electronics/sensor: Yes
Protocol: IO-Link®
Contamination level: 2
Permissible voltage uctuations for electronics/sensors: ±25%
Permissible voltage uctuations load: ±10%
Certication: RCM compliance mark
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive
