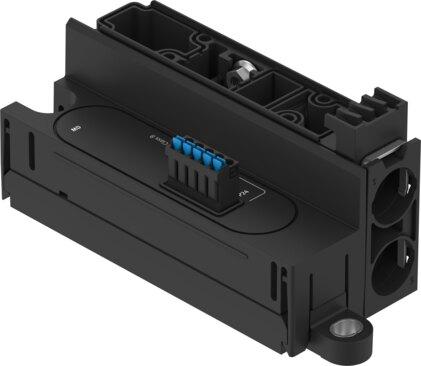

Name: Festo 8189591 Manifold sub-base VABX-A-P-EL-E12-IOL-SHUH-XL
Brand: Festo

Manifold sub-base VABX-A-P-EL-E12-IOL-SHUH-XL

The Festo part number 8189591 is an industrial component featuring dimensions of 45.6 mm x 117.4 mm x 53.9 mm and compatibility with the valve manifold VTUX-A-P in a design supporting interchangeable valve sizes and a maximum of 32 solenoid coils. It incorporates lateral connection positions, built-in reverse polarity protection, internal electronic fuses per channel for short circuit protection, and LED diagnostics for power supply load and connection status. Operating at a nominal voltage of 24 VDC for electronics, sensors, and loads, this unit maintains typical intrinsic current consumption of 10 mA for electronics and 15 mA for loads, with electrical isolation and potential separation supporting SELV/PELV fixed power supplies. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8189591
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8189591.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 1 | 2
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Connection position: Lateral
Reverse polarity protection: Yes
Diagnostics via LED: (outputs) power supply load | Connection Status
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 32
Compatible with: Valve manifold VTUX-A-P
Dimensions W x L x H: 45.6 mm x 117.4 mm x 53.9 mm
Fuse protection (short circuit): Internal electronic fuse per channel
Intrinsic current consumption at nominal operating voltage for: typically 10 mA
Intrinsic current consumption at nominal operating voltage load: Typically 15 mA
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop
Power consumption at 24 VDC: 240 mW
Max. power supply: 2 x 4 A (external fuse required)
Nominal operating voltage DC for electronics/sensors: 24 V
Nominal operating voltage DC load: 24 V
Electrical isolation of outputs between channel - internal communication: Yes
Potential separation between the supply voltages electronics/sensor: Yes
Protocol: IO-Link®
Contamination level: 2
Permissible voltage uctuations for electronics/sensors: ±25%
Permissible voltage uctuations load: ±10%
Certication: RCM compliance mark
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive
