Name: Festo 8189592 Manifold sub-base VABX-A-P-EL-E12-API-SHUH-XL
Brand: Festo

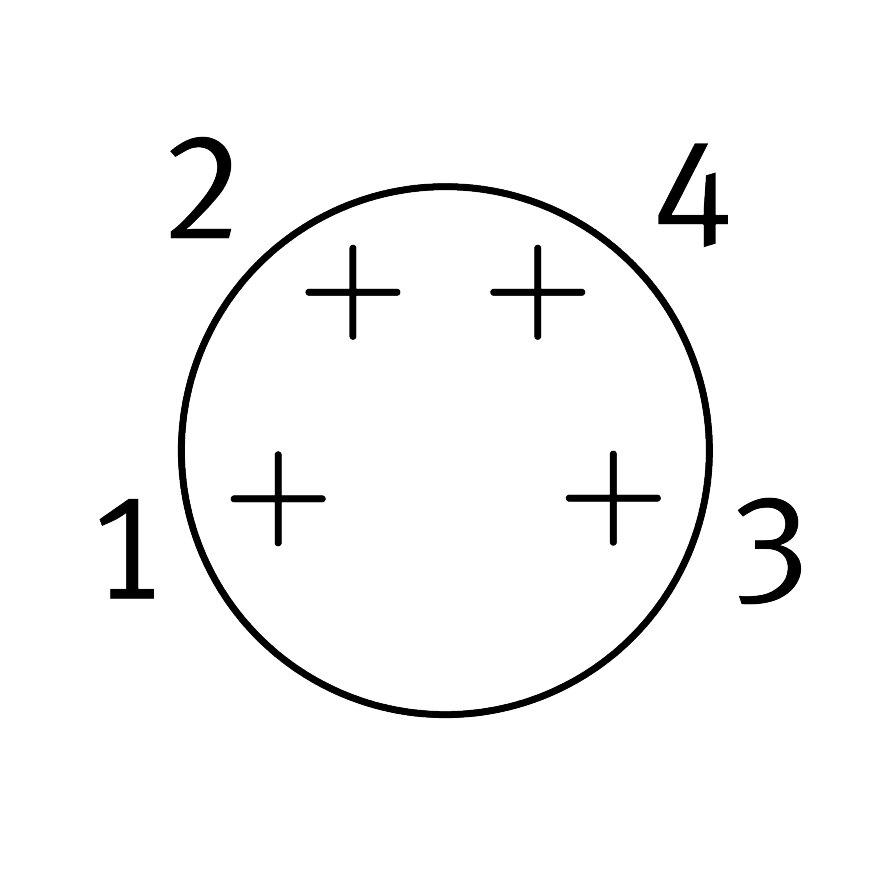

Manifold sub-base VABX-A-P-EL-E12-API-SHUH-XL

The Festo part number 8189592 is an industrial component compatible with the valve manifold VTUX-A-P, featuring a valve manifold design with interchangeable valve sizes and a maximum of 32 solenoid coils. Measuring 45.6 mm by 117.4 mm by 53.9 mm with a lateral connection position, this unit operates on a nominal DC voltage of 24 V for electronics and sensors, exhibiting an intrinsic current consumption typically of 27 mA for electronics and 13 mA for the load at nominal operating voltage. It provides LED diagnostics per module and load power supply, internal communication diagnostics for load switch-off along with electronics and sensors overvoltage and undervoltage, reverse polarity protection, and module parameters for configuring voltage monitoring, load supply PL, and response in error state. Request a quote for this Festo component today by submitting the exact part number, quantity, and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8189592
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8189592.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 1 | 2
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Connection position: Lateral
Reverse polarity protection: Yes
Diagnostics via LED: Diagnostics per module | Load power supply
Diagnose per internal communication: Load switch-oﬀ | Electronics/sensors overvoltage | Electronics/sensors undervoltage
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 32
Module parameters: Conguration of voltage monitoring, load supply PL | Response in error state
Compatible with: Valve manifold VTUX-A-P
Dimensions W x L x H: 45.6 mm x 117.4 mm x 53.9 mm
Fuse protection (short circuit): Internal electronic fuse per channel
Inductive protective circuit: Installed
Intrinsic current consumption at nominal operating voltage for: typically 27 mA
Intrinsic current consumption at nominal operating voltage load: typically 13 mA
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop
Power consumption at 24 VDC: 650 mW
Max. power supply: 2 x 4 A (external fuse required)
Nominal operating voltage DC for electronics/sensors: 24 V
Nominal operating voltage DC load: 24 V
Power failure buﬀering: 10 ms
Electrical isolation of outputs between channel - internal communication: Yes
