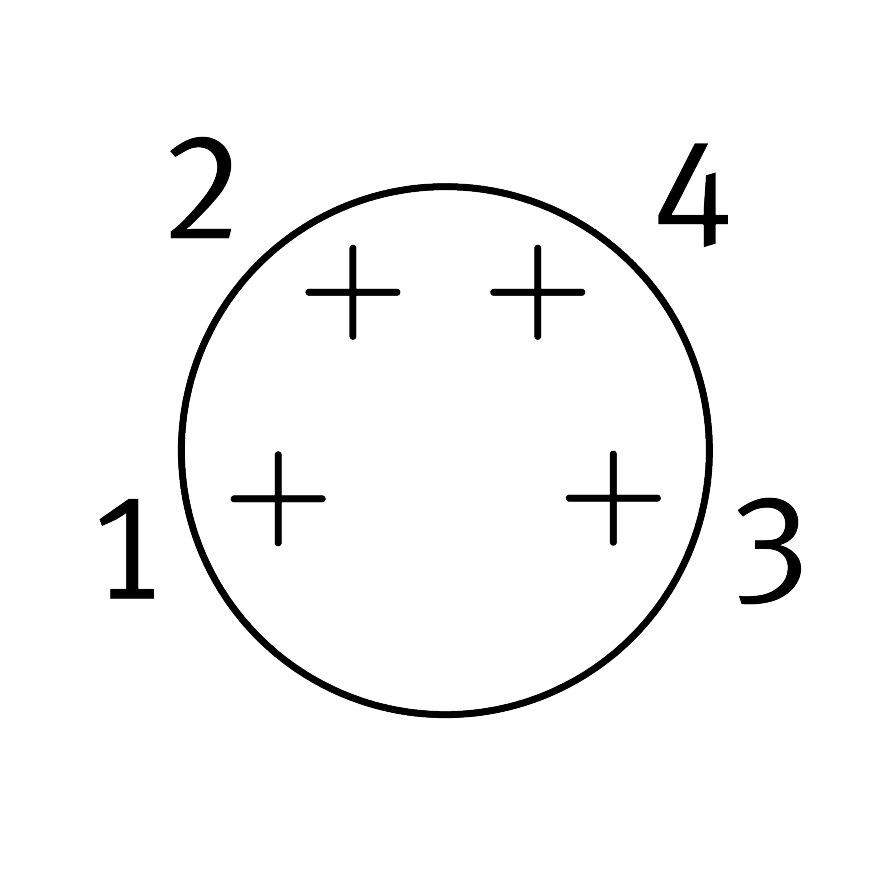

Reference imageConfirm configuration by manufacturer part number.
Festo
8189593
Manifold sub-base VABX-A-S-EL-E12-API-SHUH-XL
This Festo industrial component, part number 8189593, is designed for the valve manifold VTUX-A-S and features an interchangeable valve size design with a maximum of 150 solenoid coils and lateral connection position. Measuring 45.6 mm x 117.4 mm x 53.9 mm, it operates on a nominal DC voltage of 24 V for electronics and sensors, featuring built-in reverse polarity protection, module-level LED diagnostics, and internal electronic fuse short-circuit protection per channel. The unit complies with FN 942017-4, EN 60068-2-6, FN 942017-5, and EN 60068-2-27 standards for vibration and shock resistance at severity level 2. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8189593
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8189593.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Connection position
- Lateral
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per module
- Diagnose per internal communication
- Load supply undervoltage PL | Logic supply undervoltage PS
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 150
- Module parameters
- Conguration of voltage monitoring, load supply PL | Response in error state
- Compatible with
- Valve manifold VTUX-A-S
- Dimensions W x L x H
- 45.6 mm x 117.4 mm x 53.9 mm
- Fuse protection (short circuit)
- Internal electronic fuse per channel
- Inductive protective circuit
- Installed
- Intrinsic current consumption at nominal operating voltage for
- typically 27 mA
- Intrinsic current consumption at nominal operating voltage load
- typically 13 mA
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Power consumption at 24 VDC
- 650 mW
- Max. power supply
- 2 x 4 A (external fuse required)
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Electrical isolation of outputs between channel - internal communication
- Yes
- Potential separation between the supply voltages electronics/sensor
- Yes
