Festo
8189594

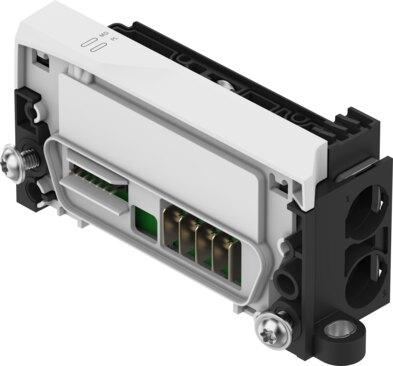

Manifold sub-base VABX-A-P-EL-E12-APA-SHUH-XL
The Festo part number 8189594 is an industrial component compatible with the valve manifold VTUX-A-P, featuring a valve manifold design with interchangeable valve sizes and support for a maximum of 32 solenoid coils. Measuring 35.2 mm by 117.2 mm by 56.1 mm with a lateral connection position, it includes LED diagnostics per module and load power supply, internal electronic short-circuit fuse protection per channel, and built-in inductive protective circuits. This unit operates at a nominal voltage of 24 VDC for both electronics/sensors and load, exhibiting typical intrinsic current consumptions of 27 mA and 13 mA respectively at nominal operating voltage. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8189594
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8189594.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Connection position
- Lateral
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per module | Load power supply
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Electronics/sensors undervoltage
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 32
- Module parameters
- Conguration of voltage monitoring, load supply PL | Response in error state
- Compatible with
- Valve manifold VTUX-A-P
- Dimensions W x L x H
- 35.2 mm x 117.2 mm x 56.1 mm
- Fuse protection (short circuit)
- Internal electronic fuse per channel
- Inductive protective circuit
- Installed
- Intrinsic current consumption at nominal operating voltage for
- typically 27 mA
- Intrinsic current consumption at nominal operating voltage load
- typically 13 mA
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Power consumption at 24 VDC
- 650 mW
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Electrical isolation of outputs between channel - internal communication
- Yes
- Potential separation between the supply voltages electronics/sensor
- Yes
- Protocol
- AP
- Contamination level
- 2
