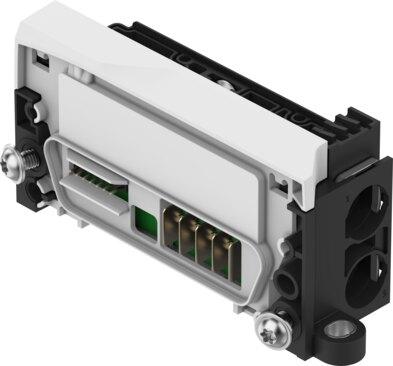

Name: Festo 8189595 Manifold sub-base VABX-A-S-EL-E12-APA-SHUH-XL
Brand: Festo

Manifold sub-base VABX-A-S-EL-E12-APA-SHUH-XL

The Festo part number 8189595 is an industrial component compatible with the valve manifold VTUX-A-S, featuring dimensions of 35.2 mm x 117.2 mm x 56.1 mm and a lateral connection position. Designed with a valve manifold architecture supporting interchangeable valve sizes and a maximum of 120 solenoid coils, this module operates at a nominal voltage of 24 V DC for both electronics, sensors, and load. It includes built-in reverse polarity protection, internal electronic fuse short-circuit protection per channel, an installed inductive protective circuit, and diagnostic capabilities via LED per module and internal communication for load supply and logic supply undervoltage. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8189595
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8189595.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 1 | 2
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Connection position: Lateral
Reverse polarity protection: Yes
Diagnostics via LED: Diagnostics per module
Diagnose per internal communication: Load supply undervoltage PL | Logic supply undervoltage PS
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 120
Module parameters: Conguration of voltage monitoring, load supply PL | Response in error state
Compatible with: Valve manifold VTUX-A-S
Dimensions W x L x H: 35.2 mm x 117.2 mm x 56.1 mm
Fuse protection (short circuit): Internal electronic fuse per channel
Inductive protective circuit: Installed
Intrinsic current consumption at nominal operating voltage for: typically 27 mA
Intrinsic current consumption at nominal operating voltage load: typically 13 mA
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop
Power consumption at 24 VDC: 650 mW
Nominal operating voltage DC for electronics/sensors: 24 V
Nominal operating voltage DC load: 24 V
Power failure buﬀering: 10 ms
Electrical isolation of outputs between channel - internal communication: Yes
Potential separation between the supply voltages electronics/sensor: Yes
Protocol: AP
Contamination level: 2
Permissible voltage uctuations for electronics/sensors: ±25%
