Name: Festo 8191214 Limit switch box SRBK-CA4-YR90-MW-1-1WG-C2
Brand: Festo

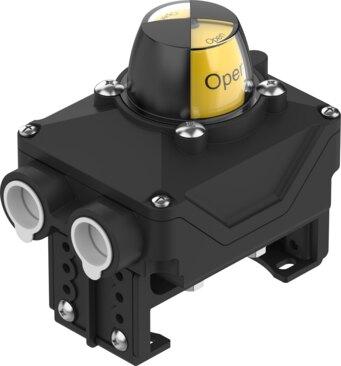

Limit switch box SRBK-CA4-YR90-MW-1-1WG-C2

The Festo part number 8191214 is a mechanical and electrical position-measuring industrial component with a sensing range of 0 degrees to 90 degrees and an SIL 3 safety integrity level. Featuring an Omron SS-01 microswitch type with a contact-based gold switching output and screw terminal electrical connection, this unit operates at a maximum DC voltage of 30 V and a max DC output current of 100 mA within an ambient temperature range of -20 °C to 70 °C. It carries c CSA us (OL) certification, Eurocert SIL202587141 issuing authority, RoHS compliance, and CE and UKCA markings per EU and UK directives for EMC, low voltage, and RoHS. Please submit the exact part number, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8191214
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8191214.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measured variable: Position
Measuring principle: Mechanical/electrical
Sensing range: 0 deg...90 deg
Ambient temperature: -20 °C...70 °C
Switching output: Contact-based (gold)
Switching element function: Toggle switch, single-pin
Max. switching output voltage DC: 30 V
Max. output current DC: 100 mA
Max. switching capacity DC: 3 W
DC operating voltage range: 0 V...30 V
Microswitch type: Omron SS-01
Electrical connection: Screw terminal
Electrical connection 1, connection type: Terminal strip
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Square
Electrical connection 1, connection technology: Screw terminal
Electrical connection 1, number of pins/wires: 10
Closable nominal conductor cross-section: 0.25 mm²...2.5 mm²
Cable tting: M20x1.5
Dimensions W x L x H: 130 mm x 85 mm x 128 mm | 130 mm x 85 mm x 138 mm | 130 mm x 85 mm x 158 mm | 147 mm x 85 mm x 128 mm | 147 mm x 85 mm x 138 mm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8191214. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
