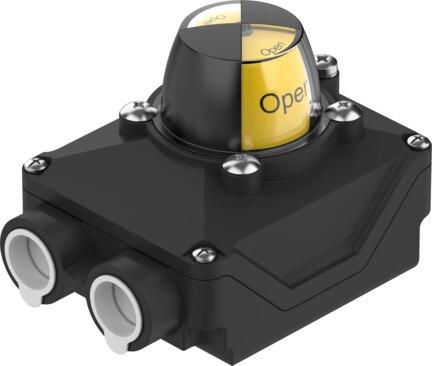

Name: Festo 8191220 Limit switch box SRBK-CA5-YR90-MW-1-1WG-C2-EX6
Brand: Festo

Limit switch box SRBK-CA5-YR90-MW-1-1WG-C2-EX6

The Festo part number 8191220 is an industrial component certified with CE and UKCA markings as per EU and UK explosion protection (ATEX/IEC-EX/UKEX) and RoHS directives. It is rated for explosion prevention and protection in gas zones 0, 1, and 2, as well as dust zones 20, 21, and 22, covering ATEX categories II 1G and II 1D with specified ignition protections for an explosive ambient temperature range of -20°C to +80°C. Maximum input voltage, current, power, and effective internal inductance and capacitance parameters are defined in the IECEx certificate. Submit the exact part number, quantity, and application requirements to request a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8191220
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8191220.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): acc. to UK EX instructions | To UK RoHS instructions
Explosion prevention and protection: Zone 0 (ATEX) | Zone 0 (IEC-EX) | Zone 0 (UKEX) | Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 20 (ATEX) | Zone 20 (IEC-EX) | Zone 20 (UKEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
ATEX category gas: II 1G
Type of ignition protection for gas: Ex ia IIC T6...T4 Ga | Ex ia IIC T6/T5/T4 Gb
ATEX category for dust: II 1D
Type of (ignition) protection for dust: Ex ia IIIC T135°C Db | Ex ia IIIC T200 135°C Da
Explosion protection certication outside the EU: EPL Da (GB) | EPL Da (IEC-EX) | EPL Db (GB) | EPL Db (IEC-EX) | EPL Ga (GB) | EPL Ga (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
Explosive ambient temperature: -20°C <= Ta <= +80°C
Max. input voltage Vi: See IECEx certicate
Max. input current Ii: See IECEx certicate
Max. input power Pi: See IECEx certicate
Eﬀective internal inductance Li: See IECEx certicate
Eﬀective internal capacitance Ci: See IECEx certicate

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8191220. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
