Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8191740

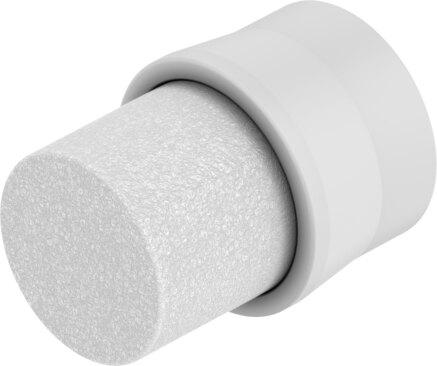

Silencer AMTX-P-PC12
The Festo part number 8191740 is an industrial component featuring a 12 mm cartridge pneumatic connection and a pack size of 1 with a product weight of 0.7 g. Operating within a pressure range of -0.1 MPa to 0.7 MPa (-1 bar to 7 bar) and an ambient temperature range of -5 °C to 50 °C, it utilizes compressed air as per ISO 8573-1:2010 [7:4:4] as the operating medium. Constructed with a protective grounding muffler material and RoHS-compliant materials, this component achieves a corrosion resistance class (CRC) of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity. Installation is performed using a retaining clamp type of mounting. Please submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191740
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191740.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 1
- Operating pressure
- -0.1 MPa...0.7 MPa | -1 bar...7 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Type of mounting
- With retaining clamp
- Product weight
- 0.7 g
- Pneumatic connection
- Cartridge 12 mm
- Note on materials
- RoHS compliant
- Muffler material
- Protective grounding
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191740. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
