Festo
8191741

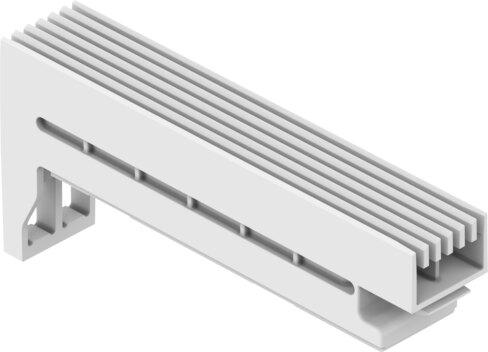

Exhaust plate VABF-XA-12-M1-C
The Festo 8191741 is an industrial component featuring a pack size of 1 and a snap-in mounting type, engineered for compatibility with the VTUX-A-P and VTUX-A-S valve manifolds. This RoHS compliant part operates within a pressure range of -1 bar to 7 bar with a burst pressure of 17 bar, yielding a standardized flow rate of 5200 l/min according to DIN 1343, though it is not suitable for vacuum applications. Constructed with a reinforced polyamide housing and a protective grounding muffler material, the 24.9 g unit withstands moderate corrosion stress (CRC 2) and VDMA24364-B2-L LABS conformity while generating a noise level of 95 dB(A) and a sound power level of 106 dB(A) at a 1 m distance within a storage temperature range of -20 °C to 70 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191741
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191741.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 1
- Compatible with
- Valve manifold VTUX-A-P | Valve manifold VTUX-A-S
- Burst pressure
- 17 bar
- Operating pressure
- -0.1 MPa...0.7 MPa | -1 bar...7 bar
- Suitability for vacuum
- No
- Standard ow rate (standardized according to DIN 1343)
- 5200 l/min
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...70 °C
- Noise level
- 95 dB(A)
- Sound power level at a distance of 1 m
- 106 dB(A)
- Product weight
- 24.9 g
- Type of mounting
- Snap-in
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Muffler material
- Protective grounding
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191741. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
