Festo
8191749

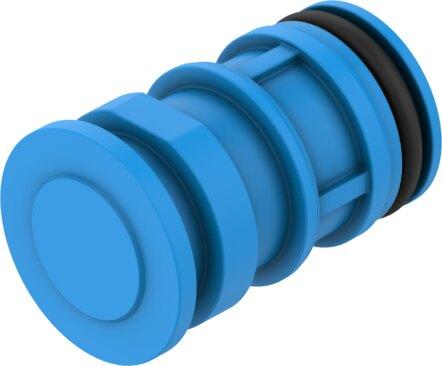

Blanking plug NPQX-P-PC10
The Festo part number 8191749 is a standard industrial component featuring a reinforced polyamide blanking plug, an HNBR O-ring, and a product weight of 1 g. It operates within a pressure range of -0.1 MPa to 1 MPa (-1 bar to 10 bar, -14.5 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and required for continued operation across an ambient temperature range of -10 °C to 60 °C. Designed for any mounting position using a retaining clamp, this RoHS-compliant component achieves a corrosion resistance class of 3 for high corrosion stress and VDMA24364-B1/B2-L LABS conformity, supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191749
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191749.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Mounting position
- Any
- Pack size
- 10
- Operating pressure
- -0.1 MPa...1 MPa | -1 bar...10 bar | -14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1 g
- Type of mounting
- With retaining clamp
- Note on materials
- RoHS compliant
- Blanking plug material
- PA-reinforced
- O-ring material
- HNBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191749. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
