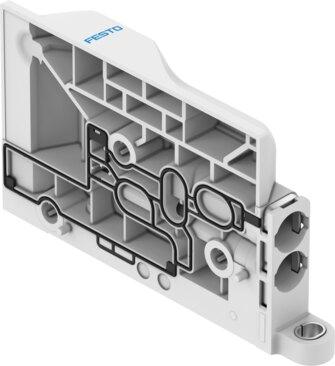

Reference imageConfirm configuration by manufacturer part number.
Festo
8191781
Manifold sub-base VABX-A-ER-E12-JHTH-XR
Engineered by Festo as part number 8191781, this industrial component features an integrated coding cover for determining internal or external control air supply on VTUX-A-P and VTUX-A-S valve manifolds. The unit provides reversible flow direction, vacuum suitability, and dimensions of 15.05 mm by 104.3 mm by 66.55 mm with a product weight of 57.9 g. Constructed with a reinforced polyamide housing, NBR seals, and high-alloy stainless steel components, the assembly achieves a corrosion resistance class of 2 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191781
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191781.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Integrated function
- Coding cover for determining the control air supply (internal or external)
- Flow direction
- Reversible
- Compatible with
- Valve manifold VTUX-A-P | Valve manifold VTUX-A-S
- Suitability for vacuum
- Yes
- Dimensions W x L x H
- 15.05 mm x 104.3 mm x 66.55 mm
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque for wall mounting
- 6 Nm
- Product weight
- 57.9 g
- Sub-base mounting type
- With through-hole
- Pilot air port 12/14
- for 12 mm cartridge
- Pilot exhaust air port 82/84
- for 12 mm cartridge
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- PA-reinforced
- Sleeve material
- high-alloy stainless steel
- Clip material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191781. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
