Festo
8191788

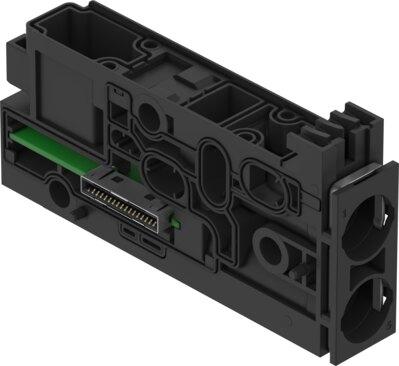

Manifold sub-base VABX-A-P-BU-12-SHUH-U
The Festo industrial component, part number 8191788, features a width dimension of 19.05 mm, a length of 104.3 mm, a height of 43.1 mm, and a product weight of 56.3 g with an integrated electrical interlinking module and reversible flow direction. Designed for compatibility with the valve manifold VTUX-A-P, it offers suitability for vacuum, IP65 degree of protection, and moderate corrosion stress resistance class (CRC) 2. This unit complies with RCM, KC-EMV, and CE markings per EU EMC and RoHS directives, while withstanding transport vibration and shock tests of severity level 2 under EN standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191788
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191788.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Width dimension
- 19.05 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Integrated function
- With electrical interlinking module
- Flow direction
- Reversible
- Compatible with
- Valve manifold VTUX-A-P
- Suitability for vacuum
- Yes
- Dimensions W x L x H
- 19.05 mm x 104.3 mm x 43.1 mm
- Contamination level
- 2
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 56.3 g
- Electrical actuation
- Multi-pin
- Sub-base mounting type
- With through-hole
- Type of mounting
- Tie rod
- Pneumatic connection 1
- for 15 mm cartridge
- Pneumatic connection 5
- for 15 mm cartridge
- Note on materials
- RoHS compliant
- Material of sub-base
- PA-reinforced
- Seals material
- NBR
- Clip material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191788. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
