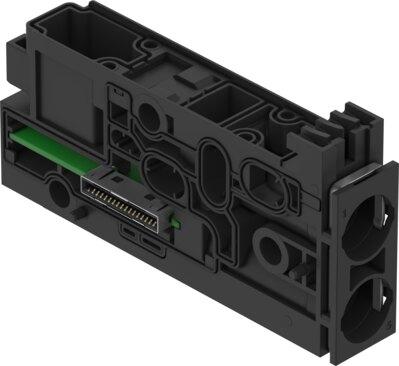

Reference imageConfirm configuration by manufacturer part number.
Festo
8191789
Manifold sub-base VABX-A-S-BU-12-SHUH-U
The Festo industrial component, part number 8191789, features a width dimension of 19.05 mm and dimensions of 19.05 mm x 104.3 mm x 43.1 mm in size 1 | 2 with an integrated electrical interlinking module and reversible flow direction. Compatible with the valve manifold VTUX-A-S and offering suitability for vacuum, this unit carries an IP65 degree of protection, RCM compliance mark, KC-EMV markings, and CE markings per EU EMC and RoHS directives alongside a CRC rating of 1 and VDMA24364-B1/B2-L LABS conformity. It withstands vibration resistance test severity level 2 as per FN 942017-4 and EN 60068-2-6 and shock resistance test severity level 2 as per FN 942017-5 and EN 60068-2-27 within an ambient temperature range of -5 °C to 50 °C and contamination level 2. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191789
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191789.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1 | 2
- Width dimension
- 19.05 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Integrated function
- With electrical interlinking module
- Flow direction
- Reversible
- Compatible with
- Valve manifold VTUX-A-S
- Suitability for vacuum
- Yes
- Dimensions W x L x H
- 19.05 mm x 104.3 mm x 43.1 mm
- Contamination level
- 2
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95%
- Degree of protection
- IP65
- Overvoltage category
- II
- Ambient temperature
- -5 °C...50 °C
- Nominal altitude of use above sea level
- < 3000 m NHN
- Product weight
- 56.3 g
- Electrical actuation
- AP interface
- Communication interface, protocol
- AP
- Sub-base mounting type
- With through-hole
- Type of mounting
- Tie rod
- Pneumatic connection 1
- for 15 mm cartridge
- Pneumatic connection 5
- for 15 mm cartridge
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191789. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
