Festo
8191794

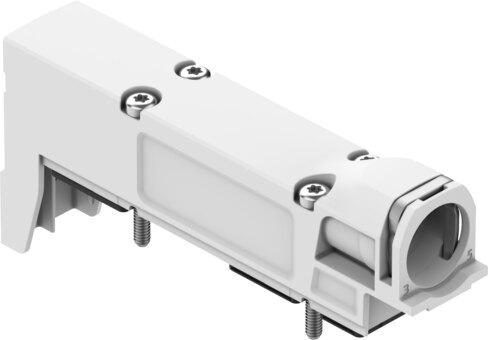

Exhaust plate VABF-XA-12-M2-QX
The Festo 8191794 industrial component features a reversible flow direction with a pack size of 1 and a product weight of 34.7 g, compatible with valve manifold VTUX-A-P and valve manifold VTUX-A-S. It operates within a pressure range of -0.1 MPa to 0.7 MPa (-1 bar to 7 bar), supports vacuum applications, and possesses a corrosion resistance class of CRC 2 with VDMA24364-B2-L LABS conformity. Constructed with a PA-reinforced housing, NBR seals, high-alloy stainless steel clip, and high-grade steel screws, the unit is mounted via screws at a nominal tightening torque of 0.8 Nm with a ±10% tolerance, incorporating a 15 mm cartridge pneumatic port 3/5 combined and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191794
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191794.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 1
- Flow direction
- Reversible
- Compatible with
- Valve manifold VTUX-A-P | Valve manifold VTUX-A-S
- Operating pressure
- -0.1 MPa...0.7 MPa | -1 bar...7 bar
- Suitability for vacuum
- Yes
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...70 °C
- Nominal tightening torque
- 0.8 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 34.7 g
- Type of mounting
- Screwed
- Pneumatic port 3/5 combined
- for 15 mm cartridge
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- PA-reinforced
- Clip material
- high-alloy stainless steel
- Material of screws
- High-grade steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191794. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
