Festo
8191808
Ball valve unit VZBA-A-2-GG-63-T-22-F0507-V4V4T-PA60

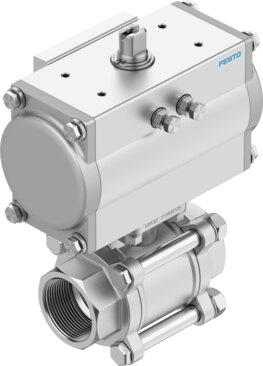

The Festo 8191808 is a pneumatic 2-way ball valve featuring a quarter turn actuator and a soft sealing principle for in-line installation in any mounting position with an Rp2 fitting connection. Designed for a nominal width DN of 50 and a nominal pressure PN of 63, this 2/2 valve functions with a reversible flow direction, a flow rate Kv of 275 m³/h, and a breakaway torque of 44 Nm at nominal fitting pressure. It operates at a pressure range of 0.55 MPa to 0.8 MPa (5.5 bar to 8 bar, 79.75 psi to 116 psi) and accommodates a medium temperature of -10 °C to 200 °C across compressed air, inert gas, water without water vapor, and neutral liquids. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191808
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191808.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp2
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0507
- Nominal width DN
- 50
- Valve function
- 2/2
- Flow direction
- Reversible
- Operating pressure
- 0.55 MPa...0.8 MPa | 5.5 bar...8 bar | 79.75 psi...116 psi
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 44 Nm
- Based on norm
- DIN 3202-M3 | EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 275 m³/h
- Max. surface temperature of assembly
- +105°C...+280°C | T4...T2
- Explosion group of assembly
- IIC, IIIC
