Name: Festo 8191832 Ball valve unit VZBA-A-3-WW-63-T-22-F0710-V4V4T-PA160
Brand: Festo

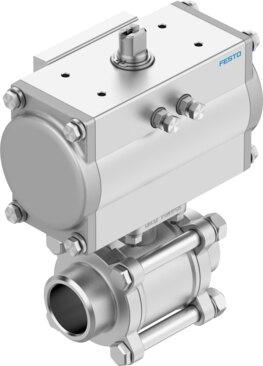

Ball valve unit VZBA-A-3-WW-63-T-22-F0710-V4V4T-PA160

The Festo 8191832 is a 2-way pneumatic ball valve featuring a quarter-turn actuator, a soft sealing principle, and weld-on ends for in-line installation in any mounting position. Built on DIN 3202-S13 and ISO 5211 norms with an F0710 flange hole pattern, this DN 80 valve delivers a Kv flow rate of 905 m³/h and requires an operating pressure of 0.55 MPa to 0.8 MPa to overcome a breakaway torque of 112 Nm at nominal pressure PN 63. It accommodates media temperatures from -10 °C to 200 °C across compressed air, inert gas, water, and neutral liquids, utilizing reversible flow direction and a slot direction switching position indicator. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8191832
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8191832.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: 2-way ball valve | Quarter turn actuator
Actuation type: Pneumatic
Sealing principle: Soft
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Weld-on ends/weld-on ends
Switching position indication: Slot direction = ow direction
Flange hole pattern: F0710
Nominal width DN: 80
Valve function: 2/2
Flow direction: Reversible
Operating pressure: 0.55 MPa...0.8 MPa | 5.5 bar...8 bar | 79.75 psi...116 psi
Nominal pressure of tting PN: 63
Breakaway torque at diﬀerential pressure, nominal pressure, tting PN: 112 Nm
Based on norm: DIN 3202-S13 | ISO 5211
Medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -10 °C...200 °C
Flow rate Kv: 905 m³/h
Max. surface temperature of assembly: +105°C...+280°C | T4...T2
Explosion group of assembly: IIC, IIIC
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8191832. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
