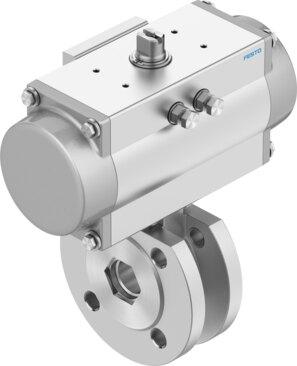

Reference imageConfirm configuration by manufacturer part number.
Festo
8191893
Ball valve unit VZBC-A-80-FF-16-22-F07-V4V4T-PB480
The Festo 8191893 is a 2/2-way soft-sealed pneumatic ball valve featuring a quarter-turn actuator, a nominal width DN of 80, and an in-line flange connection based on EN 1092-1 with an F07 flange hole pattern. Designed for reversible flow with a Kv flow rate of 905 m³/h, this component operates at a pressure range of 0.55 MPa to 0.8 MPa (5.5 bar to 8 bar) and handles medium temperatures from -10 °C to 200 °C with a breakaway torque of 117 Nm at nominal fitting pressure PN 16. It accommodates compressed air, inert gas, water without vapor, and neutral liquids, requiring oil lubrication for the operating medium. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191893
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191893.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Flange as per EN 1092-1
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F07
- Nominal width DN
- 80
- Valve function
- 2/2
- Flow direction
- Reversible
- Operating pressure
- 0.55 MPa...0.8 MPa | 5.5 bar...8 bar | 79.75 psi...116 psi
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 117 Nm
- Based on norm
- EN 1092-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 905 m³/h
- Max. surface temperature of assembly
- +105°C...+280°C | T4...T2
- Explosion group of assembly
- IIC, IIIC
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191893. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
