Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

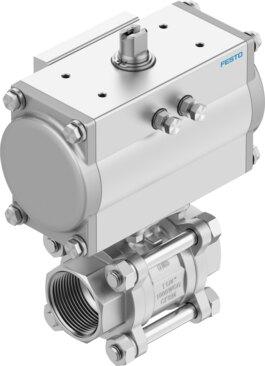

Reference imageConfirm configuration by manufacturer part number.
Festo
8191905
Ball valve unit VZBE-A-4-T-63-T-2-F1012-V15V16-PA240
The Festo part number 8191905 is an industrial 2-way pneumatic soft-sealed ball valve with a quarter turn actuator configured for in-line installation in any mounting position. It features a 4 NPT fitting connection, a nominal width DN of 100, a 2/2 valve function, and a nominal pressure PN of 63 based on ASME B1.20.1 and ISO 5211 norms with an F1012 flange hole pattern. The unit operates at a pressure range of 0.55 MPa to 0.8 MPa (5.5 bar to 8 bar or 79.75 psi to 116 psi) with a breakaway torque of 138 Nm at differential and nominal pressure, accommodating a flow rate Kv of 1637 m³/h across a medium temperature range of -10 °C to 200 °C. Compatible media include compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water without water vapor, neutral liquids, and other flow media on request. Submit your exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191905
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191905.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 4 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F1012
- Nominal width DN
- 100
- Valve function
- 2/2
- Flow direction
- Reversible
- Operating pressure
- 0.55 MPa...0.8 MPa | 5.5 bar...8 bar | 79.75 psi...116 psi
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 138 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 1637 m³/h
- Max. surface temperature of assembly
- +105°C...+280°C | T4...T2
- Explosion group of assembly
- IIC, IIIC
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191905. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
