Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

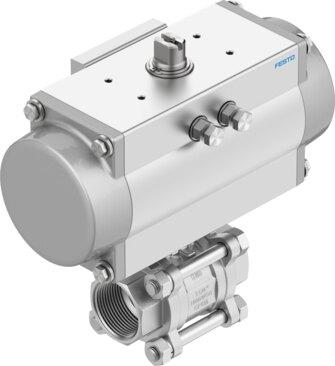

Reference imageConfirm configuration by manufacturer part number.
Festo
8191913
Ball valve unit VZBE-A-2-T-63-T-2-F0507-V15V15-PB120
This Festo 2-way ball valve with a quarter turn pneumatic actuator features a soft sealing principle, 2 NPT fitting connections, and a nominal width DN of 50. Built on ASME B1.20.1 and ISO 5211 norms with an F0507 flange hole pattern, the unit operates at pressures from 0.55 MPa to 0.8 MPa and a medium temperature range of -10 °C to 200 °C, delivering a flow rate Kv of 420 m³/h. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191913
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191913.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 2 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0507
- Nominal width DN
- 50
- Valve function
- 2/2
- Flow direction
- Reversible
- Operating pressure
- 0.55 MPa...0.8 MPa | 5.5 bar...8 bar | 79.75 psi...116 psi
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 44 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 420 m³/h
- Max. surface temperature of assembly
- +105°C...+280°C | T4...T2
- Explosion group of assembly
- IIC, IIIC
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8191913. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
