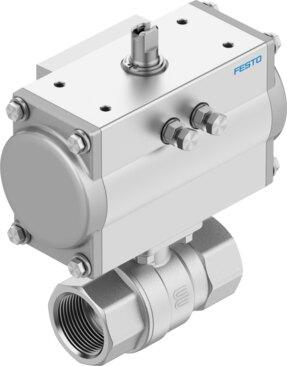

Reference imageConfirm configuration by manufacturer part number.
Festo
8191917
Ball valve unit VAPB-A-1/4-F-40-F03-PA10
The Festo 8191917 industrial component is a 2-way soft-sealing ball valve paired with a pneumatic quarter-turn actuator, featuring an Rp1/4 fitting connection and an F03 flange hole pattern for in-line installation in any mounting position. Designed with a DN 15 nominal width, a PN 40 nominal pressure, a Kv flow rate of 5.9 m³/h, and a 5 Nm breakaway torque at nominal differential pressure, it operates at pressures between 0.55 MPa and 0.8 MPa (5.5 bar to 8 bar) across a medium temperature range of -10 °C to 200 °C. Compatible with compressed air, inert gas, water, and neutral liquids based on EN 10226-1 and ISO 5211 norms, this unit utilizes slot-direction flow indication and allows for reversible flow. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8191917
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8191917.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve | Quarter turn actuator
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1/4
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03
- Nominal width DN
- 15
- Valve function
- 2/2
- Flow direction
- Reversible
- Operating pressure
- 0.55 MPa...0.8 MPa | 5.5 bar...8 bar | 79.75 psi...116 psi
- Nominal pressure of tting PN
- 40
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 5 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 5.9 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass, nickel-plated
- Material number of housing
- 2,0402
