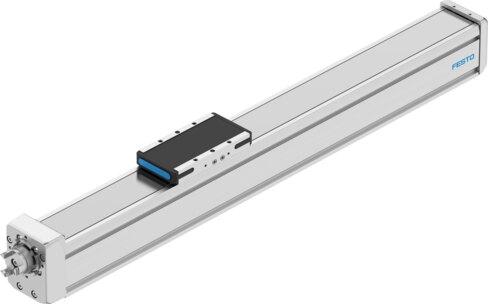

Reference imageConfirm configuration by manufacturer part number.
Festo
8192253
Ball screw axis ELGD-BS-KF-60-100-0H-5P
The Festo 8192253 is an electromechanical linear axis featuring a ball screw structural design with a 60 size, 100 mm working stroke, 12 mm screw diameter, and 5 mm/U spindle pitch. Engineered with a recirculating ball bearing guide and a ball screw reversing backlash of ±0.02 mm, this component achieves a maximum speed of 0.6 m/s, a maximum rotational speed of 6667 rpm, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.01 mm. It supports 100% duty cycle operation with either a stepper or servo motor, incorporates an incremental linear potentiometer for position sensing, and is suitable for battery production with reduced Cu/Zn/Ni values (F1a) alongside VDMA24364-C1-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8192253
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8192253.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm
- Size
- 60
- Stroke reserve
- 0 mm
- Ball screw reversing backlash
- ±0.02 mm
- Screw diameter
- 12 mm
- Spindle pitch
- 5 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Measuring principle of linear potentiometer
- Incremental
- Position sensing
- For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 6667 rpm
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1 (with vacuum insert) | Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.001 J
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 508600 mm⁴
- 2nd moment of area Iz
- 685700 mm⁴
- No-load torque at maximum travel speed
- 0.107 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8192253. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
