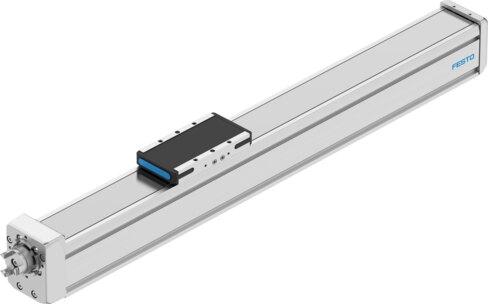

Reference imageConfirm configuration by manufacturer part number.
Festo
8192262
Ball screw axis ELGD-BS-KF-60-300-0H-10P
The Festo 8192262 is an electromechanical linear axis featuring a size 60 structural design with a ball screw, a 300 mm working stroke, a 12 mm screw diameter, and a 10 mm/U spindle pitch. This component includes a recirculating ball bearing guide, a ball screw reversing backlash of ±0.02 mm, an incremental linear potentiometer measuring principle, and position sensing for inductive sensors, achieving a repetition accuracy of ±0.01 mm, a maximum speed of 1.1 m/s, a maximum acceleration of 15 m/s², and a maximum rotational speed of 6667 rpm. Configured for any mounting position with a 100% duty cycle, this unit operates with stepper motors or servo motors and is suitable for battery production with reduced Cu/Zn/Ni values (F1a) and VDMA24364-C1-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8192262
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8192262.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 300 mm
- Size
- 60
- Stroke reserve
- 0 mm
- Ball screw reversing backlash
- ±0.02 mm
- Screw diameter
- 12 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Measuring principle of linear potentiometer
- Incremental
- Position sensing
- For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 6667 rpm
- Max. speed
- 1.1 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1 (with vacuum insert) | Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.001 J
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 508600 mm⁴
- 2nd moment of area Iz
- 685700 mm⁴
- No-load torque at maximum travel speed
- 0.14 Nm
