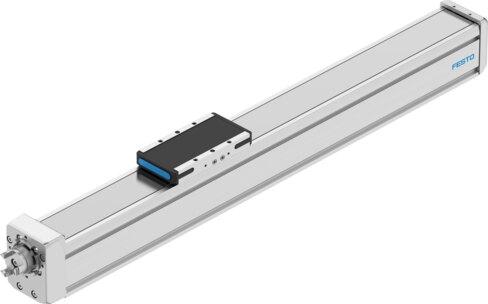

Name: Festo 8192264 Ball screw axis ELGD-BS-KF-60-500-0H-10P
Brand: Festo

Ball screw axis ELGD-BS-KF-60-500-0H-10P

The Festo 8192264 is an electromechanical linear axis featuring a ball screw structural design with a 500 mm working stroke, a size 60 profile, and a 10 mm/U spindle pitch. It accommodates either a stepper motor or a servo motor, delivering a maximum speed of 0.6 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.01 mm using a recirculating ball bearing guide and an incremental linear potentiometer measuring principle. This component operates at a 100% duty cycle in any mounting position and complies with VDMA24364-C1-L LABS conformity with reduced Cu/Zn/Ni values for battery production suitability. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8192264
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8192264.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 500 mm
Size: 60
Stroke reserve: 0 mm
Ball screw reversing backlash: ±0.02 mm
Screw diameter: 12 mm
Spindle pitch: 10 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Measuring principle of linear potentiometer: Incremental
Position sensing: For inductive sensors
Max. acceleration: 15 m/s²
Max. rotational speed: 3656 rpm
Max. speed: 0.6 m/s
Repetition accuracy: ±0.01 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.001 J
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 508600 mm⁴
2nd moment of area Iz: 685700 mm⁴
No-load torque at maximum travel speed: 0.14 Nm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8192264. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
