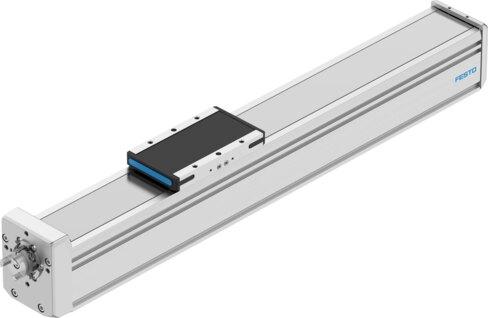

Name: Festo 8192271 Ball screw axis ELGD-BS-KF-80-500-0H-5P
Brand: Festo

Ball screw axis ELGD-BS-KF-80-500-0H-5P

The Festo 8192271 is an electromechanical linear axis featuring an 80 size, an 800 mm working stroke, a 16 mm screw diameter, and a 5 mm/U spindle pitch with a ball screw reversing backlash of ±0.02 mm. This component integrates a recirculating ball bearing guide, supports stepper or servo motors, and achieves a maximum speed of 0.4 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.01 mm with a 100% duty cycle. Featuring VDMA24364-C1-L LABS conformity, it is suitable for battery production with reduced Cu/Zn/Ni values (F1a) and accommodates any mounting position with incremental linear potentiometer measurement and position sensing for inductive sensors. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8192271
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8192271.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 500 mm
Size: 80
Stroke reserve: 0 mm
Ball screw reversing backlash: ±0.02 mm
Screw diameter: 16 mm
Spindle pitch: 5 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Measuring principle of linear potentiometer: Incremental
Position sensing: For inductive sensors
Max. acceleration: 15 m/s²
Max. rotational speed: 4692 rpm
Max. speed: 0.4 m/s
Repetition accuracy: ±0.01 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.002 J
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 1213000 mm⁴
2nd moment of area Iz: 2052000 mm⁴
No-load torque at maximum travel speed: 0.172 Nm
