Reference imageConfirm configuration by manufacturer part number.
Festo
8192284

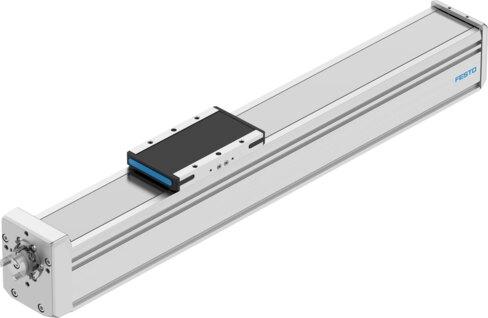

Ball screw axis ELGD-BS-KF-80-200-0H-20P
The Festo 8192284 is an electromechanical linear axis featuring a ball screw with a 16 mm diameter, a 20 mm/U spindle pitch, and an 80 size designation, delivering a working stroke of 200 mm and a stroke reserve of 0 mm. This unit supports stepper and servo motors, achieving a maximum speed of 1.7 m/s, a maximum rotational speed of 5000 rpm, a maximum acceleration of 15 m/s², and a 100% duty cycle with a repetition accuracy of ±0.01 mm and a ball screw reversing backlash of ±0.02 mm. Integrated with a recirculating ball bearing guide, an incremental linear potentiometer, and position sensing for inductive sensors, it accommodates any mounting position and complies with VDMA24364-C1-L LABS conformity while being suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8192284
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8192284.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm
- Size
- 80
- Stroke reserve
- 0 mm
- Ball screw reversing backlash
- ±0.02 mm
- Screw diameter
- 16 mm
- Spindle pitch
- 20 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Measuring principle of linear potentiometer
- Incremental
- Position sensing
- For inductive sensors
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 5000 rpm
- Max. speed
- 1.7 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1 (with vacuum insert) | Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Impact energy in the end positions
- 0.002 J
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- 2nd moment of area Iy
- 1213000 mm⁴
- 2nd moment of area Iz
- 2052000 mm⁴
- No-load torque at maximum travel speed
- 0.218 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8192284. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
