Name: Festo 8192301 Ball screw axis ELGD-BS-KF-120-500-0H-10P
Brand: Festo

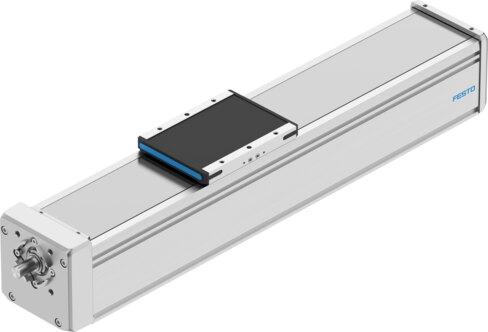

Ball screw axis ELGD-BS-KF-120-500-0H-10P

The Festo 8192301 is an electromechanical linear axis featuring a size 120 structural design with a ball screw, 500 mm working stroke, 25 mm screw diameter, and 10 mm/U spindle pitch. This component operates with a recirculating ball bearing guide, ball screw reversing backlash of ±0.02 mm, repetition accuracy of ±0.01 mm, max. speed of 0.5 m/s, max. acceleration of 15 m/s², and max. rotational speed of 3200 rpm while supporting a 100% duty cycle in any mounting position. Configured for stepper or servo motors with incremental linear potentiometer measurement and position sensing for inductive sensors, the unit meets VDMA24364-C1-L LABS conformity and is suitable for battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8192301
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8192301.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 500 mm
Size: 120
Stroke reserve: 0 mm
Ball screw reversing backlash: ±0.02 mm
Screw diameter: 25 mm
Spindle pitch: 10 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw
Motor type: Stepper motor | Servo motor
Spindle type: Ball screw
Measuring principle of linear potentiometer: Incremental
Position sensing: For inductive sensors
Max. acceleration: 15 m/s²
Max. rotational speed: 3200 rpm
Max. speed: 0.5 m/s
Repetition accuracy: ±0.01 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.001 J
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 3550000 mm⁴
2nd moment of area Iz: 8985000 mm⁴
No-load torque at maximum travel speed: 0.957 Nm
