Name: Festo 8192356 Toothed belt axis ELGD-TB-KF-80-500-0H-PU2
Brand: Festo

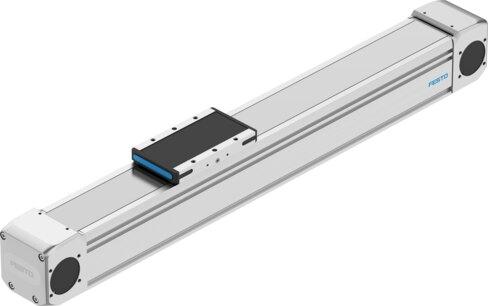

Toothed belt axis ELGD-TB-KF-80-500-0H-PU2

The Festo 8192356 is an electromechanical linear axis featuring a toothed belt structural design, a size 80 frame, and a 500 mm working stroke with 0 mm stroke reserve. Equipped with a recirculating ball bearing guide and a 42.97 mm drive pinion effective diameter, this unit achieves a maximum speed of 3 m/s, a maximum acceleration of 50 m/s², and a repetition accuracy of ±0.04 mm with a 100% duty cycle. It operates via stepper or servo motors, incorporates an incremental linear potentiometer measuring principle, and provides position sensing for inductive sensors within an IP40-rated assembly that meets ISO 14644-1 cleanroom standards and VDMA24364-C1-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8192356
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8192356.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 42.97 mm
Working stroke: 500 mm
Size: 80
Stroke reserve: 0 mm
Toothed belt pitch: 5 mm
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt
Motor type: Stepper motor | Servo motor
Measuring principle of linear potentiometer: Incremental
Position sensing: For inductive sensors
Max. acceleration: 50 m/s²
Max. speed: 3 m/s
Repetition accuracy: ±0.04 mm
Duty cycle: 100%
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1 (with vacuum insert) | Class 6 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Impact energy in the end positions: 0.00025 J
Note on the impact energy in the end positions: At maximum speed of the reference run of 0.01 m/s
2nd moment of area Iy: 1213000 mm⁴
2nd moment of area Iz: 2052000 mm⁴
Max. driving torque: 17.2 Nm
Max. force Fy: 4200 N
Max. force Fz: 4200 N
Max. force Fy total axis: 2800 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8192356. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
